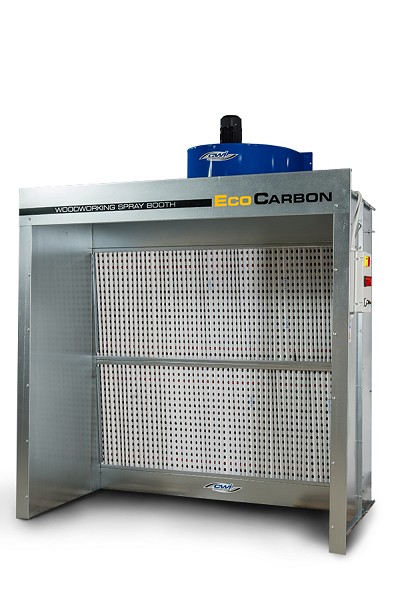

The EcoCarbon booth utilizes a unique three part filtration process which allows the recirculation of purified air within the shop air space. There is no need for external ventilation or corresponding extremely expensive air make up units. Whether water base or lacquer finishes are being sprayed the EcoCarbon booth completely cleanses the airborne chemicals and odors making it completely safe to recirculate the air directly back into the work environment.

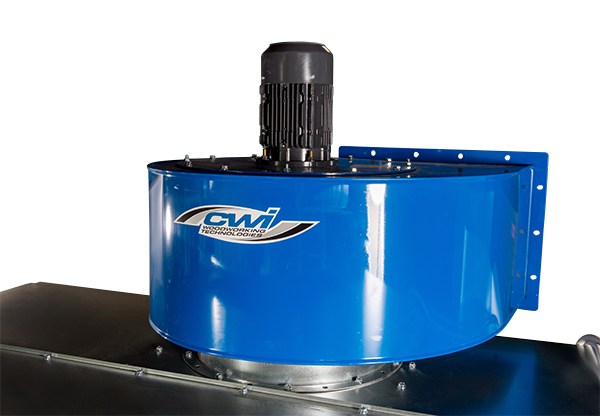

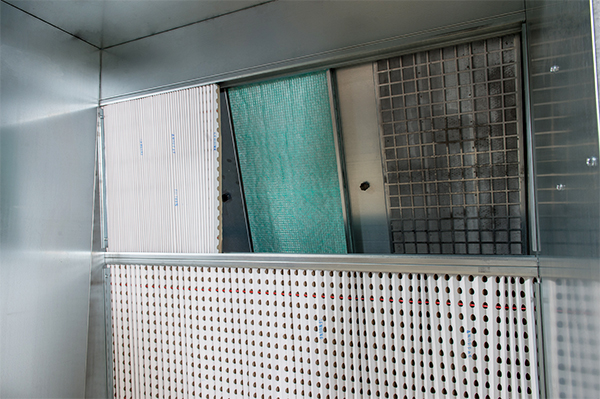

The EcoCarbon booth uses a very strong and very quiet 2 HP impeller system which draws over 8000 cubic meters of air into the open frame booth past the operator and work piece, through the bank of triple wall filtration and then back into the work space. The impeller and motor unit feature a spark proof safety system to ensure the utmost of safety concerns. The three part filtration begins with a wall of “Andrea” filtration panels which catch the overspray from the operator. The air then passes through a wall of glass fiber galvanized frame filtration panels to remove the balance of chemicals from the air. The final stage which completely cleanses the air of pollutants is a wall of 2” thick activated carbon filters in galvanized metal frames.

Activated carbon has been utilized in many industries for purification of gasses, water, air and chemicals. Due to its high degree of micro porosity one gram of activated carbon has a surface area in excess of 500 m2 due to low-volume pores that increase the surface area available for absorption. The EcoCarbon booth utilizes this advanced technology to cleanse both water borne and lacquer based finishes. For the best performance of the EcoCarbon spray booth we recommend using water base finishes and stains as the lacquer finishes will quickly use up the life of the activated carbon filters.

The EcoCarbon Woodworking Spray Booth also offers features like ceiling mounted explosion proof light fixture with bulbs, pressurized switch and warning light for filtration cleanliness and efficiency, CSA certified electrical panel for use in Canada or anywhere that higher quality electrical components are required, and 16 gauge galvanized steel construction.

The EcoCarbon CWI-SB2AE spray booth is standard in a footprint of 7’ 10” x 5’ x 10’ 9” but has optional sizes up to 20’ wide and 8’ deep….the height remains at 10’ 9” tall…and up to 24,000 cubic meters of air movement. The CWI-SB2AE utilizes three glass fiber filters 23.25” x 47.25” x 7/8” and three activated carbon filters 23.5” x 47.5” x 2” thick as well as standard accordion style “Andrea” overspray filters. Larger booths will use more filters.

For truly clean air the EcoCarbon Woodworking Spray Booth is the answer you have been looking for!

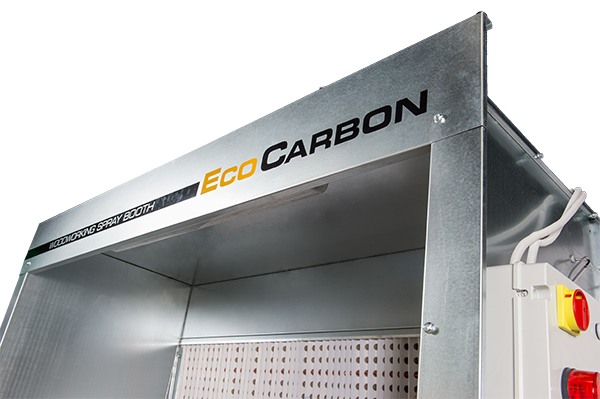

Heavy Duty Galvanized Steel Construction

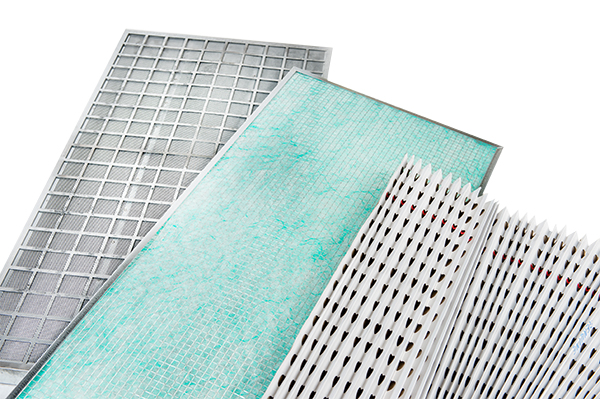

Triple Filtration Process

Initial "Andrea" Overspray Filtration

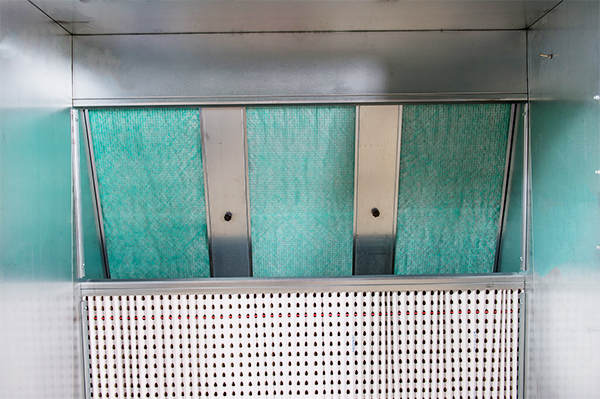

Galvanized Metal Frame Secondary Glass Fiber Filters (3 Filters)

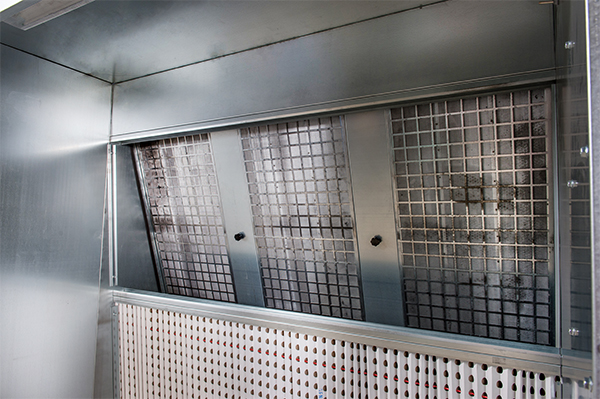

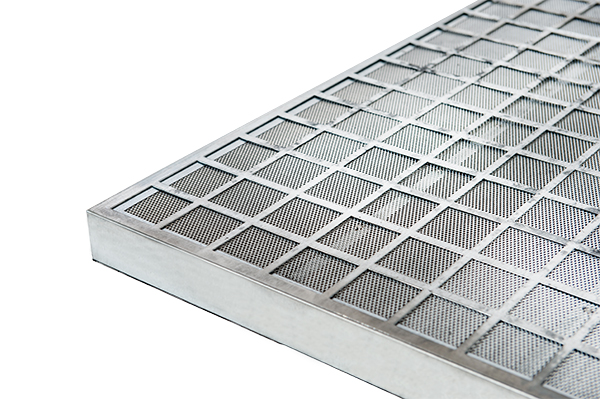

Ecologically Friendly Activated Carbon Final Filtration (3 Filters)

Economical Investment

No Need for External Ventilation

No Need for Make-up of Air Loss

4650 CFM

2 HP Quiet Impeller Motor 220/3/60

Spark Proof Safety System for Ventilation

Explosion Proof Light Fixture w/Bulbs

CSA Certification

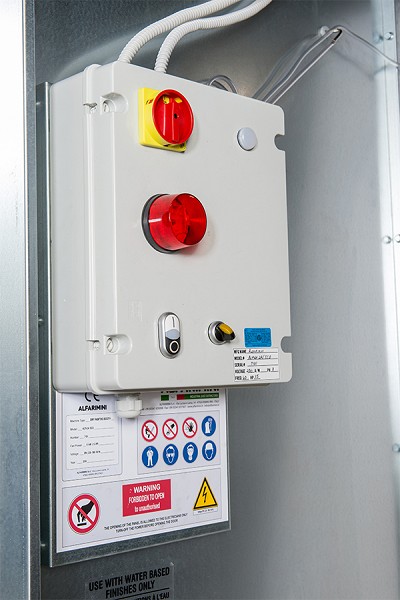

Filtration Capacity Sensor and Warning Light

Optional Sizes Available on Request

Footprint 7’ 10” x 5’ x 10’ 9”

Shipping Size 96” x 55” x 60”
